Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Output (kg/h): 20 - 2000 kg/h

Feeding Size (mm): 1 - 15 mm

Output Size (mesh): 60 - 120 mesh

Power (kW): 5.5

Range of Spindle Speed(r.p.m): 1 - 3600 r.p.m

Material: SUS304, SUS316L, Stainless Steel 304/316

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition: New

Type: Pulverizer, grinding machine

Product Type: Chemical & Pharmaceutical Materials

Voltage: 220V, 380V, 440V

Dimension(L*W*H): Customized

Weight (KG): 600 KG

Warranty: 12 months after installation.

Key Selling Points: Easy to Operate

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location: None

Marketing Type: Ordinary Product

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor

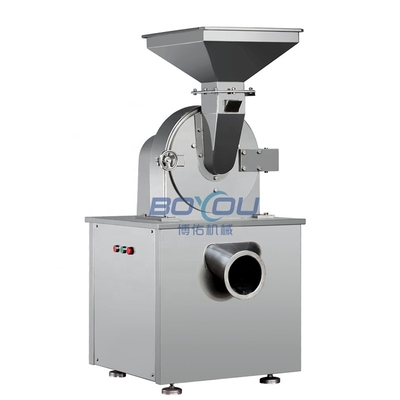

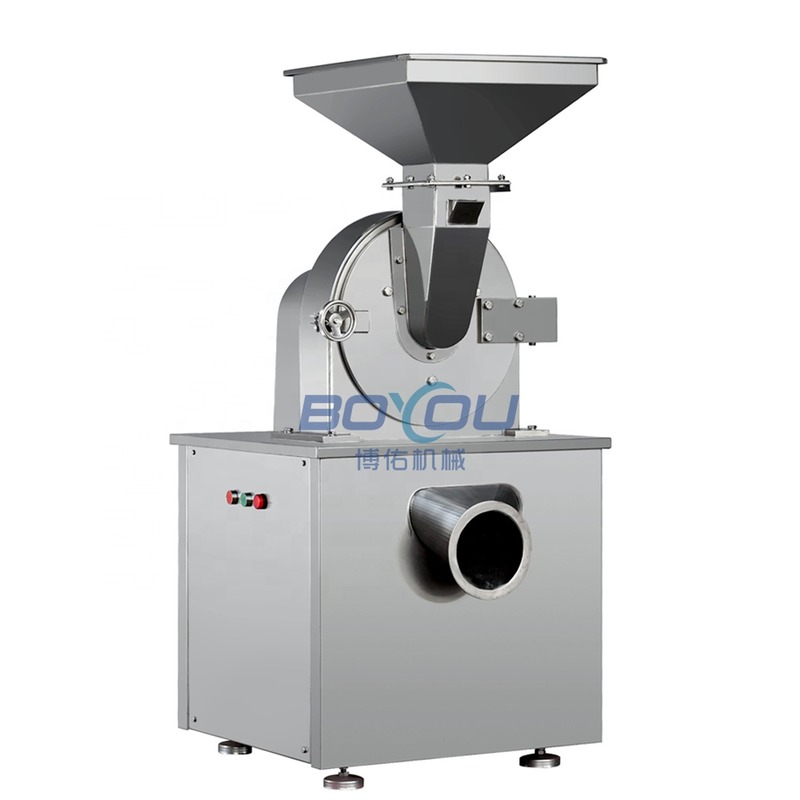

Product name: Stainless Steel Sus Industrial Sugar Grinder Pulverizer Mill Machine

Machine Type: Grinder Mill

HS Code: 8479820090

MOQ: 1 Set

Packing: plywood case packing

Function: crushing

Delivery Time: 15 days

Suitable for: food, medicine, grain etc.

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

Certificering: CE ISO

Basis informatie

Certificering: CE ISO

Betalen & Verzenden Algemene voorwaarden

Packaging Details: grinder Sugar Grinder by plywood case packing (seaworthy good packing)

Supply Ability: 30 Unit/Units per Month

Productomschrijving

Product Description

food grain herbs spice grinding machine with crushing pulverizer grinder mill equipment

The Grinder Machine is mainly used in chemical, pharmaceutical, food, spices, resin powder and other products.

The machine adopts a wind wheel type high speed rotary knife while the fixed knife is used for impact, shearing and grinding. it is not only with a good pulverizing effect, but also generates a strong air flow in the machine cavity when pulverizing. The crushing fineness can be determined by changing the screen.

Grinder Machine in Mirror Polishing

Grinding Machine in Normal Standard

4 types grinding knife optional as per different materials.

Specification

Model	20B	30B	40B	50B
Production Capacity	60-150 kg/hour	100-300 kg/hour	160-800 kg/hour	200-1000 kg/hour
Spindle Rotation Speed	5300 rpm	4200 rpm	3800 rpm	3200 rpm
Feeding Granularity	10mm	10mm	10mm	15mm
Grinding Granularity	20-150 mesh	20-120 mesh	20-120 mesh	20-120 mesh
Grinding Power	4KW	5.5KW	7.5KW	18KW

Packing & Delivery

Company Profile

Yangzhou Boyou Machinery Co., Ltd. was established in March 2006, located in Gaoyou Yangzhou City, Jiangsu Province, 1 hour fast train from Shanghai and 20 minutes from Yangzhou airport. We have over 30 years in producing vacuum mixer homogenizer, mixing machines, powder mixer, reactors, filling machines, capping machine etc., those are widely used for cosmetics, pharmacy, food, chemical etc. Our machines are hot selling and getting great feedback from USA, south America, north America, Europe, South Africa, Southeast countries etc.
Our company covers an area of 20000m2, building area of 15000m2, with ISO, CE European certification and Manufacture License for pressure machines. We have all kinds of technical personnel, research and development personnel, professional manufacturing equipment, quality testing instruments and strict quality control to make sure our machine quality.
We sincerely appreciate each trust from our customers, our stable development is closely related to your trust and support, and Yangzhou Boyou will continue to be with you to become the winner in cosmetic, pharmacy, food and chemical industry.

FAQ

1. Q: Are you factory?

A: Yes, we are a factory with more than 20 years manufacturing experience. Welcome to visit our factory.
Only 1 hour fast train from Shanghai Train Station and 20 minutes from Yangzhou Airport.

2. Q: How long is the machine warranty? After warranty, what if we meet problem about the machine?
A: Our warranty is one year. After warranty we still offer you lifetime after-sales services. Anytime you need, we are here to
help. If the problem is easy to solve, we will send you the solution by email. If it doesn't work, we will send our engineers to
your factory.

3. Q: How do you control the quality before delivery?
A: We have our quality control department, they will do testing before shipment. Or we would like you to come to our factory to check the machines in person. If your schedule is busy, we can take a online video inspection for you.

4. Q: Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are installed well before shipment. When you get the machine, you only need to do some simple wiring connections.We also have marks on each wirings. And we also have the Manual to guide you to use the machine. You are welcome to contact us if you have any doubts on using the machine.

5. Q: Can you make the machine as per our request?
A: Yes, customized machines are acceptable. We can make the machine as per your request.
